Filter Sponge:

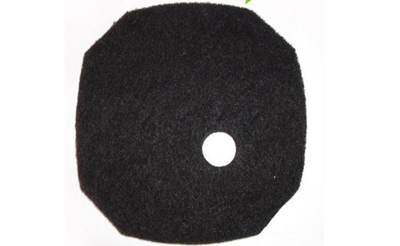

● Polyurethane Filter

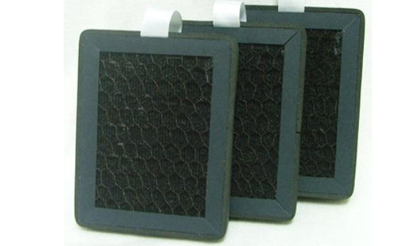

● Activated Carbon Filter

Application:

Household central, air conditioning, air purifier, aquarium smoke, lampblack, machine blower, air conditioning, room humidifying machine, Smoke machine ,special purpose equipment association had etc

Polyurethane Filter Typical Properties

Title Polyrethane Filter
Size 1*2M(+/-10mm)
Thickness tolerances +/-1mm
Hole diameter 35PPI 40PPI 50PPI 60PPI (+/-3PPI)
Specific Gravity  kg/m3 ≦25
Tensle Sterength Kpa ≦65
Elongation % ≦75
Moudulus 75% ≦6
Tear Strength N/cm3 ≦5
65%25%Compressed Ratio ≦1.5
Static Resist 8.0x1010
Acid Alkali Resist PII 5.0-8.0
Air permeabilily 95%
Wind Resistance ≦90Pa

Activated Carbon Filter Typical Properties

Adsorption performance Benzene ≧90% , Iodine ≧1000mg/g
Deodorant properties B mercaptan ≧90% (120 minutes) Amino trimethylene  ≧90% (120 minutes)
Activated carbon content 135kg/m3  (±10kg)
Main material Polyester ethyl carbamate bubble
Activated carbon materials Nut shell activated carbon powder
heat-resistant (Temperature range) 20°C-130°C
Operating cycle ≧6months
