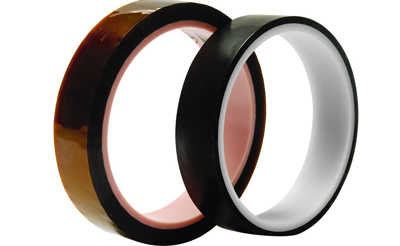

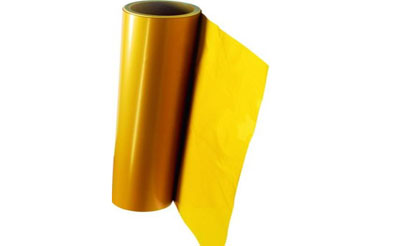

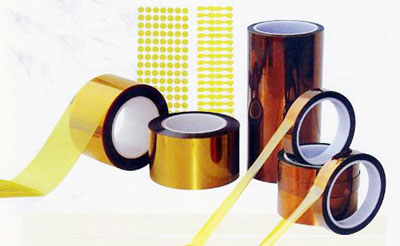

Thermally conductive polyimide film:
It is a homogeneous film possessing three times the thermal conductivity and cut strength of standard generous-purpose polyimide film; Its thermal conductivity property combines the characteristic of high temperature resistance makes it ideal for usage in controlling and managing heat in electronic assemblies; It extends the storage life of electronic components at temperatures between 0 and 30°C as packaging material.
Feature:
Higher thermal conductivity
Halogen-free,environment-friendly.
Application:
Ceramic board replacement

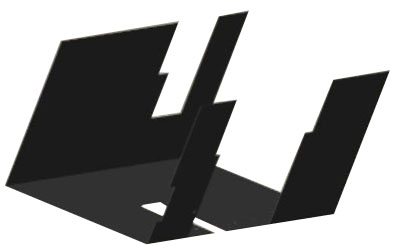

Insulation pads (heat sink)
Thickness range:
Thickness available:25um 38um 50um 75um
(others are also available to be customized if needed)
Typical Properties:
| Item | Typical Value | |
| Appearance | Smooth surface，uniformed color ，even edge without damage | |
| Type | HT36110 | |
| THK | 25±3μm | |
| Tensile Strength | MD | ≥125Mpa |
| TD | ≥110Mpa | |
| Elongation | MD | ≥30% |
| TD | ≥40% | |
| Thermal Conductivity | ≥0.36 W/m.k | |
| Roll width | 520mm | |
| Standard Length | 1500m | |
| Transmittance | ≤0.1% | |
| Surface Resistivity | 1.0×1013Ω | |
| Dielectric Strength | ≥4.0KV | |
