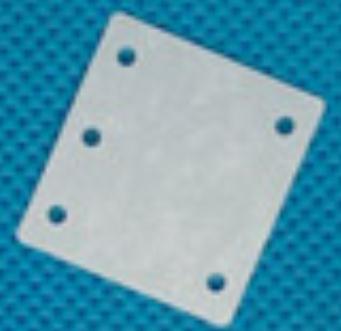

NOMEX® T410

NOMEX® T410 is a calendered insulation paper which have superior property by offering high inherent dielectric strength, mechanical toughness, flexibility and resilience. NOMEX® Type 410 is the original form of NOMEX® paper, and is widely used in a majority of electrical equipment applications. Available in 12 thicknesses products(0.05 to 0.76 mm) with specific gravities from 0.7 to 1.2,which is widely used in a majority of electrical equipment applications.

Feature

● Inherent dielectric strength
● Mechanical toughness
● Flexibility and resilience
● Thermal stability
● Chemical compatibility
● Mechanical properties

Application

● Voltage Transformers
● Motors and Generators
● Fire-resistant wrapper and maker tapes for cables, appliance switchovers, shields for printed circuit boards, etc.

Typical properties

Color Original color
Thickness 0.13mm ~ 0.25mm
Dielectric constant 1.6-3.4
at 60 Hz
Dielectric strength 27-33
-AC rapid rise
(kV/mm)
Density g/ cm3 0.72-1.06
UL grade The fire-resistance grade reaches UL94V-0
